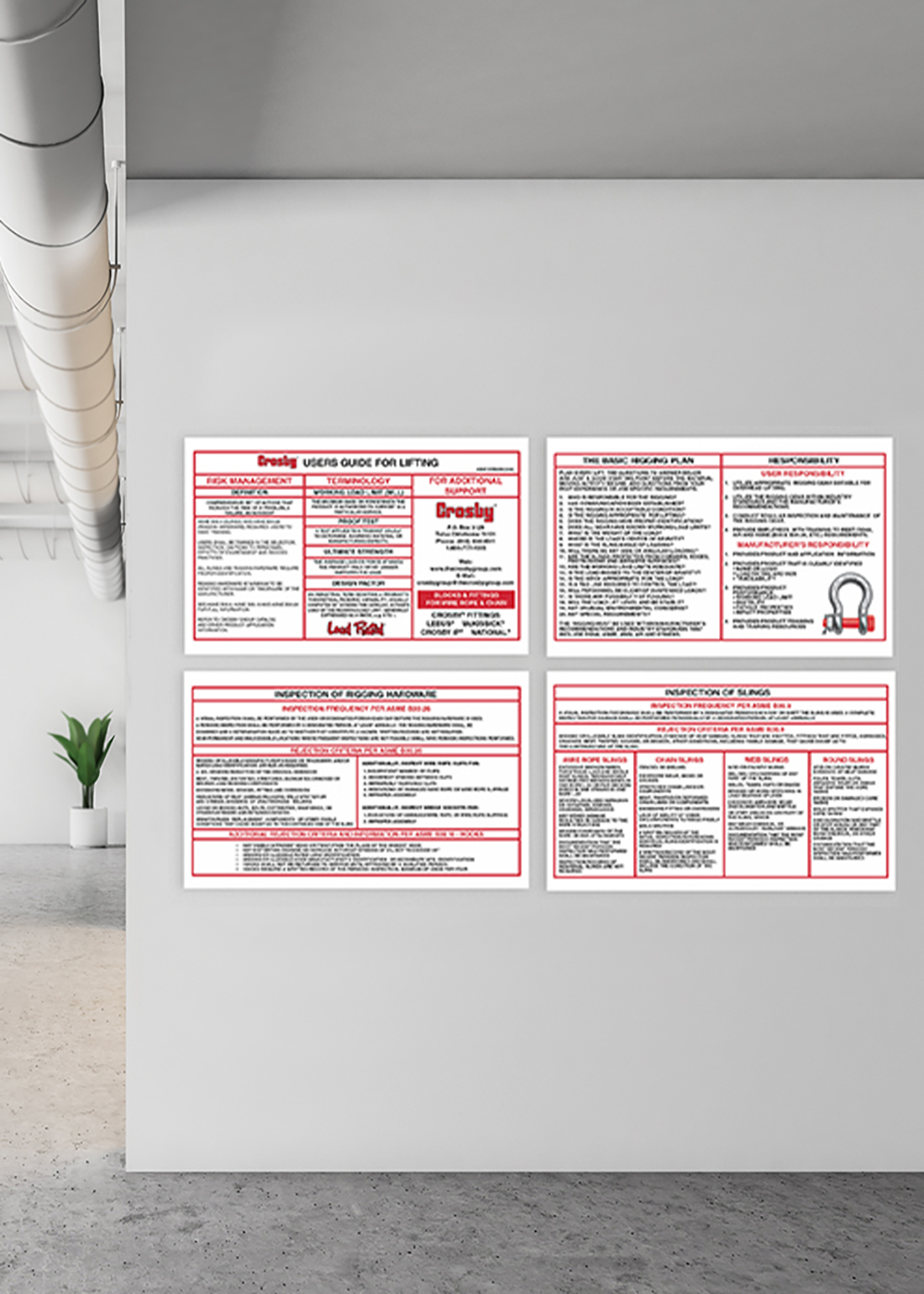

Crosby Rigging Wall Charts
(9999132)

We have taken the most popular panels of our User’s Guide for Lifting Rigging Card and have magnified the individual panels to 24” x 18” wall chart size. This set of wall charts includes the following rig card panels from the pocket-size rig card. (15 separate panels) Printed on 12 pt. C2S cover with UV gloss coating on both sides.

• The Basic Rigging Plan
• Inspection of the Hardware and Slings (per ASME B30.9)
• Working Load Limits and Basic Rigging Information on Shackles, Hooks, Links, Rings, Eyebolts, Swivel Hoist Rings, etc.
• Weights & Measures, and Center of Gravity
• Sling Capacities for Wire Rope and Grade 80/100 Chain Slings
• Wire Rope and Chain Sling Connections, and Basic Hitches
• Operating Practices for Slings per ASME B30.9
• Wire Rope Clip Installation Information

Number of wall chart sets per box = 1 set of 15 panels
Panels included: 1,2,3,4,5,6,7,9,10,11,12,13,14,15,16.
$76.00 includes 1 set.
